Ion Exchange Process:-

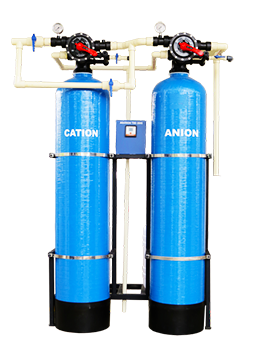

CATION UNIT

1. 	The raw water is liable to vary from time to time and E.M.A. is therefore, likely to change and should be checked regularly.  To control rinsing, continue rinsing until two successive test for F.M.A. give the same figure for F.M.A.

2. 	Regenerate Cation when F.M.A. begins to fall from its normal steady value.

3. 	If the Sodium to Total Cation ratio increases, there is a danger that slip will increase beyond tolerable limits.  The treated water conductivity and pH will be high.  In such instances, an increased quantity of acid should be used for regeneration.

4. 	The capacity is proportional to total Cation content of raw water.  A regular comparison between actual Tc and designed Tc will give an indication of the capacity to be expected.



ANION UNIT
1. 	The Cation outlet water is inlet water to Anion.  This water will be acidic to Methyl Orange.  It will also contain some free CO2 about 6 ppm if a degasser is installed.

2.   The water leaving the Anion unit will be Alkaline to Methyl Orange and initially free
        of CO2 Chloride, Silica. The conductivity of anion outlet water is a direct measurement
       of purity.

3. 	For many purposes this water is directly taken to process or if higher purity is required then acts as inlet water to Mixed Bed Polishing Unit.

Caution :-  1) Do not backwash Counter current Regenerated Unit every time you take the                                  	               unit for regeneration.  It can be carried once after every 10-15 regeneration.

2) 	Always use treated water for dilution of chemicals and also for power water.  Use

Cation water for power water for regeneration of Cation unit
      and Anion water for regeneration of Anion Unit.

3) 	The quality of water obtained after Anion Unit is dependent on the Cation water entering it.  Any Sodium slip from Cation Unit is converted to NaOH in the Anion Unit.

4) 	1ppm of NaOH in treated water results in a conductivity of 5-6  s/ cm.  Presence of NaOH in the D. M. water results in its having a high pH and Phenolphthalein Alkalinity

DELIVERY SCHEDULE
Delivery Period will start from date of receipt of Technically & Commercially clear Purchase Order
Drawings will be provided for approval within a week after receipt of request from you and you will Provide drawing approval within 1 week.
In case you have any comments/observations or any change required on Drawing submitted for approval, please get back to us within 7 days else we will presume that drawings are in order and shall be released for production. Any delay in approval of drawings by you beyond one week or any time taken to redo the drawings after approval until re¬-approval, the delivery will be extended accordingly.
Delivery starting on Ex¬ works basis 	: 	6-8 weeks

Rs. 5000/Head/ Day (8 hours) will be charged for supervision for Erection & Commission and all accommodation (Lodging & Boarding) will be extra or  in client scope
 Though erection and commissioning is performed by client and client request from us to be present in time commissioning. is payable.
STANDARD TERMS AND CONDITIONS
SPECIFICATIONS
Specifications, dimensions, design, description, shades of paint etc are not binding on us in minute details and are subject to reasonable alteration / change without notice.
INSPECTION
If necessary, the goods will be offered for inspection at our works/our supplier’s works. The date of inspection will be intimated about one week in advance. If inspection is not carried out on the date mentioned, we shall be free to dispatch the equipment as per the terms of delivery.
If payment is not made within 15 days from the date of Performa Invoice, we reserve the right to divert the ordered material. We will give fresh delivery period and new price at the time of diversion which will be binding on the purchaser and contract cannot be rendered void on this account.  If the goods are not diverted, charges for storage, insurance and interest at 1% of the Invoice value each week/part thereof commencing 15 days from the date of Proforma Invoice will be charged. Warehousing charges are subject to a maximum of 5% of the Invoice value.
WARRANTY
The equipment supplied by us shell be warranted for 12 months from the date of installation and commissioning or 18 months from the date of supply for any manufacture defect, however defect arise due to miss handling, incorrect operation wear and tear shell be entertained with reasonable charges. The warranty of all instruments and pump and motor and other equipment except prefabricated items will be covered under actual manufacturer’s warranty conditions.
HANDOVER
Unless and otherwise specified in the order and accepted, handing over of the equipment and / or installation would be considered as completed and a formal completion certificate shall be issued by the purchaser / user.
The equipment/system, to be supplied by us, shall be site erected and commissioned at purchaser’s site.
This equipment/system shall be legally transferred to the buyer only after realization of full and final payment.
MODE OF DELIVERY
The goods may be dispatched in one or more lots at our option. If we are required to dispatch the goods on behalf of customer, we can arrange to do so on freight to pay basis on the understanding that no liability is attached to us. In such case, Freight charges contracted by us on behalf of the purchaser shall be final and binding on the purchaser.
CANCELLATION
Order received and acknowledged by us shall not be subject to cancellation, either wholly or partly for any reason whatsoever without our written consent.
FORCE MAJEURE
The order from the purchaser is subject to force majeure by which it means, such as war, invasion, civil disobedience, govt. orders or restrains, strike, lockout, riots, fire, epidemics, sabotages, trade embargoes, earthquakes, floods, accidents, breakdown of machines, delay or inability to obtain labour, raw material, wagons, shipping space or any other process, which is beyond our and our supplier’s control.

JURISDICTION
All contracts between purchaser and ourselves are deemed to have entered into in DELHI and are therefore subject to the Jurisdiction of Courts in DELHI.

Excluded

Extra as per actual

Design Criteria
Input TDS :- Max-300 PPM
Out Put TDS- 10 PPM

Note: -  The frontal pipe lines are included, MOC of pipe lines shall be UPVC
